Fast, easy cost-saving access control solution for adding 2 access control readers at any door

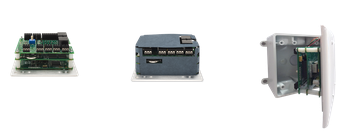

Now featuring EZ-learn mode for use in the CA4K software environment, the cost-saving CICP2100 & new surface mount CICP2100S Power Over Ethernet Controllers support two readers and/or one low current strike via POE. IT-friendly, supports POE or RS485, to downstream 10 controllers on 1 network drop.
Dramatically reducing labor and equipment costs, the CICP2100 Series can be used networked with, or in place of conventional 2-16 Door Supertwo® or Accelaterm® Controllers and/or Networx® Wireless Access Control Locks. Up to 14 uniVerse Controllers can be networked together using RS485 high-speed repeat mode. There are two models, one that fits in a double-gang box and new surface-mount model, ideal for cinder block construction or any hard-to-wire applications.
- Saves $1000/door dramatically reducing labor and equipment – Surface mount or fits in double gang box & powers ID readers & electric strike
- New & improved! EZ learn networking
- POE or optional 12V transformer
- IT-friendly POE or RS485, to downstream 10 controllers on 1 network drop
- POE Panel Supports 2 Readers for 1 Door
- Superfast 54 MHz RISC Processor
- Supports 200K cards
- 4MB on-board memory
- 1000 Standard transaction buffer, Expandable to 10,000
- 256 Time schedules; 30,000 Access groups; 5x100 Holidays
- 2 Form C Relay outputs, door and auxiliary (MOV- protected)
- Supports power for low-current electric strike
- Reader & Accessory Power- 350mA @5VDC & 700mA @12VDC
- POE Onboard Ethernet
- High Speed 921.6 KBPS baud communication support
- Supports RS-485 Repeat Communication (4-wire) & Readers (2-wire)
- 4 Supervised inputs
- Unsurpassed FIPS/CAC/TWIC performance
- 36-month Continental Warranty
- 16-Door Access Controller
- Featuring:
- 8 to 16 reader panel, minimum 40,000 card capacity, 100,000 - 200,000 typical, expandable to Million+
- 10-Times Faster! Under 5-Minutes for full downloads (firmware & data). Onboard direct-connect LAN adapter for speeds over 921Kbps
- Superfast 54MHz 32-bit processor
- 4MB on-board memory, expandable to 20MB
- 24 Supervised inputs; expandable to 72
- 17 Form C-rated relay outputs, expandable to 65
- 1000 Transaction buffer, expandable to 50,000(software dependent).
- 256 Time Schedules; 30,000 Access groups; 5x100 Holidays
- Unsurpassed FIPS/CAC/TWIC performance
- Retrofit-Ready -Simultaneous multi-reader/ID credential support
- Super-capacity power supply for max. standby & reader power, included
- Virtually Environment- & Power Outage-Proof – Full onboard multi- stage lightning protection and fully distributed processing to internal memory (works as standalone system if server is down).
- Lowest acquisition & maintenance costs – 3-year warranty
Use with new CA3000 v2.11 Software!
- Up to 5000 badges
- 1-2 Wiegand output devices (readers and or keypads) controlling one door
- Downloadable Firmware loaded to Flash memory
- 99 Time Schedules
- 99 Access Groups
- 5 sets of 30 Holidays
- Supports up to 63 Networx Panels per Gateway
- Inputs for door position contact to indicate the status of the door
- Inputs for a remote release button or sensor
- Proximity Card Formats Supported: Most formats supported
- Onboard bi-directional Networx radio
- Operating Temperature: 14-120°F (–10-49°C)
- Input Power: 16.5VAC via Class 2 Plug-In 50VA- Transformer (supplied model TRF-14)
- Maximum Lock Power Output Current: 1.5A @12VDC
- Primary and Secondary Relays: SPDT Form C, N/O, N/C 8A @ 30VAC or VDC
- Supplied Backup Battery: Sealed Lead Acid 4AH
- Battery Backup Time: Approximately 2 hours at full load
- Housing Dimensions (H x W x D): 10.5 x 8.5 x 3 in. (26.6 x 21.6 x 7.6 cm)
Trilogy Networx is known for being one of the best in its class. Featuring standalone digital, Prox, and classroom lock-down keyfob locks, with HID or iClass Prox readers & wireless networking. With global lockdown in seconds, without door-to-door programming and audit trail queries, you can do it from a lock, server, or keyfob. A Trilogy lock can be installed in less than an hour, allowing you to add wireless access control to one door at a time using Napco Access Pro Platforms.
Wireless Networx Panel for universal use with most standard IDs & readers. Ideal for many applications including those hard to wire to, such as gate controllers, it communicates wirelessly (900MHz), accepting up to two Weigand output devices, also includes 2 relays N/O or N/C, and 1.5A @12VDC power for strikes, mag locks, etc.
